Remote Access to an eHub OS System with Konnect

After registration, any eHub OS System is accessible through Konnect.

To view the eHub OS System on Konnect, perform the following steps.

  • Login to Konnect with a valid account.

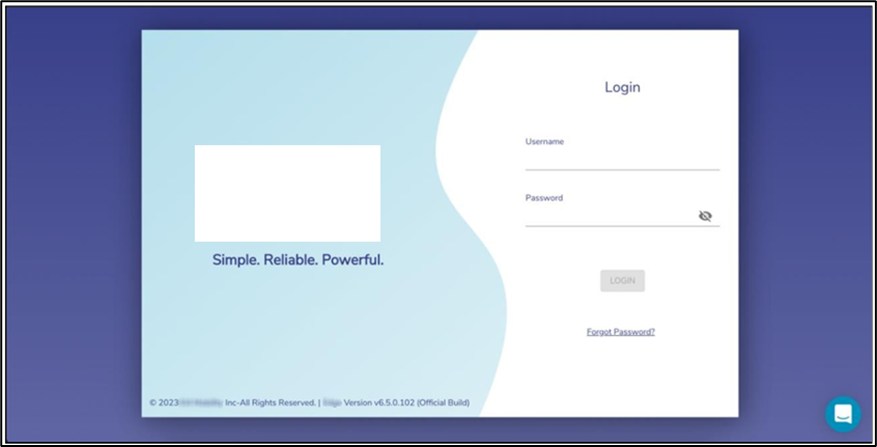

Konnect Login Page
  • Enter the Site Name of the System in the Search By Location input field

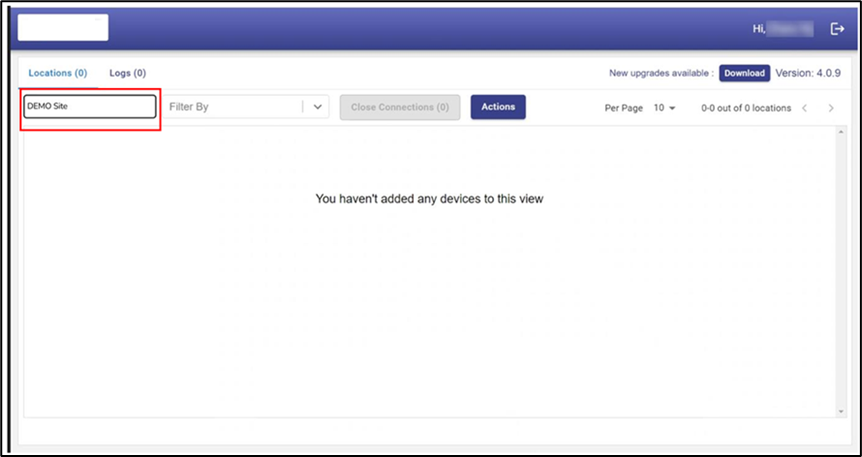

Konnect Landing Page, Site Search


  • The Site Name becomes available in the drop down

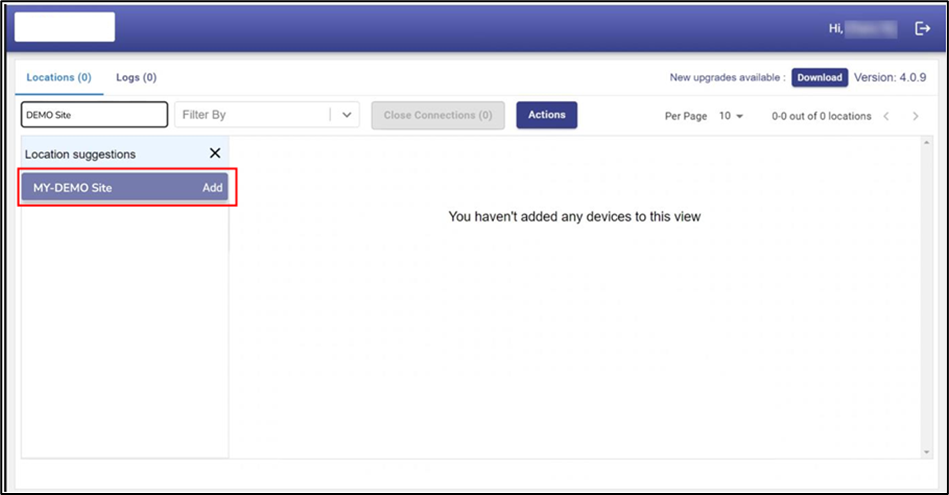

Konnect - Select a Site
  • Click the Add button next to the Site Name to make the site available in the main table.

  • Click on the expand arrow icon to expand the site. The systems available in this Site are listed. The user can access the System with ssh and experience the local eHub OS web portal through a browser

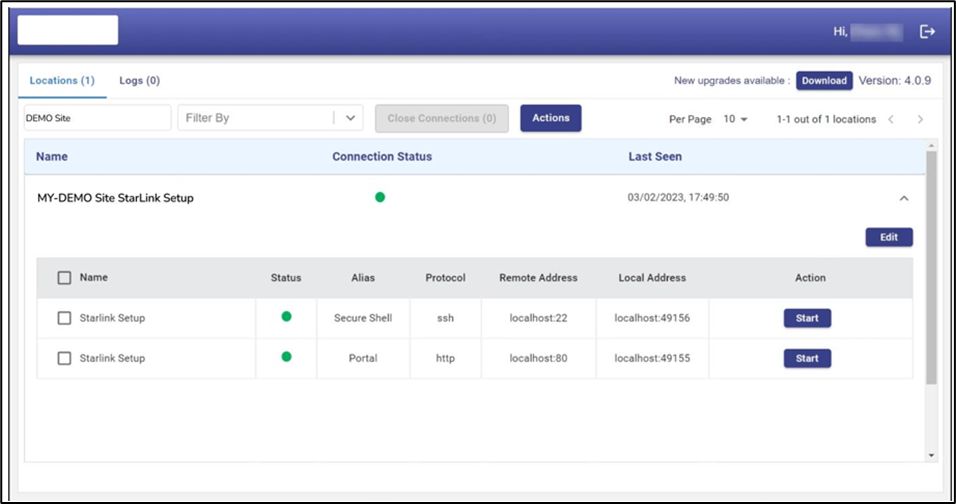

Konnect - View System Details
  • Click on the corresponding Start button - the Stop and Open button appear

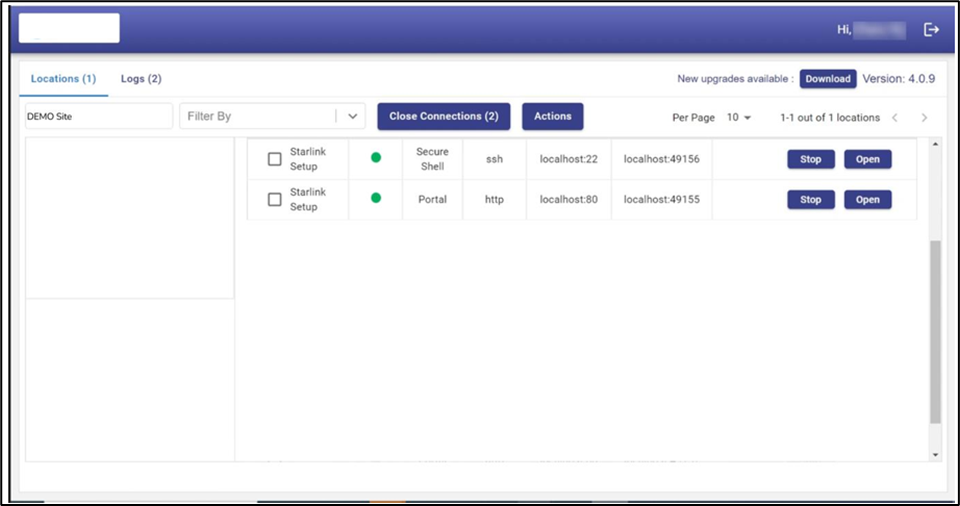

Konnect - Open Connection
  • Click on the Open button to access the selected interface/port of the eHub OS system

  • When finished, click on Stop to release the connection.
